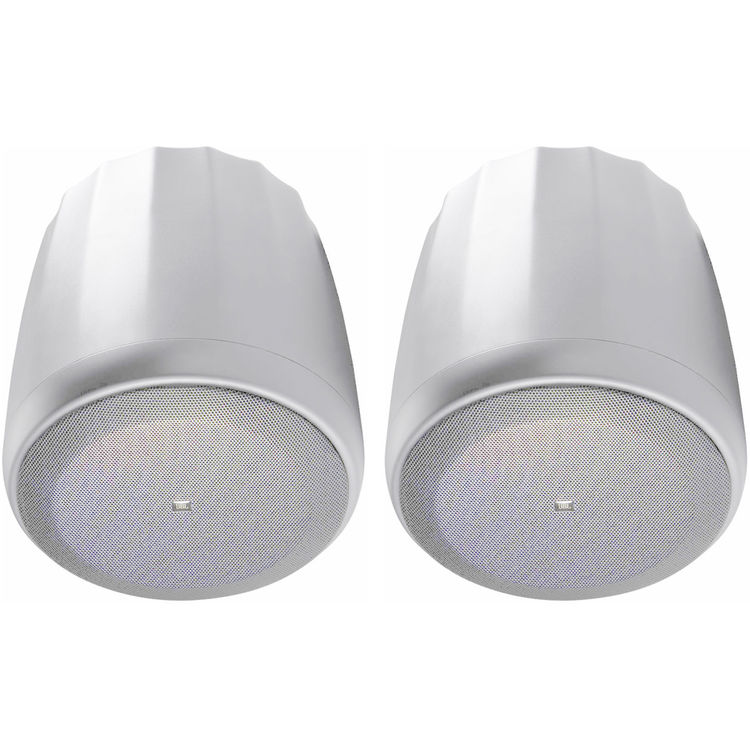

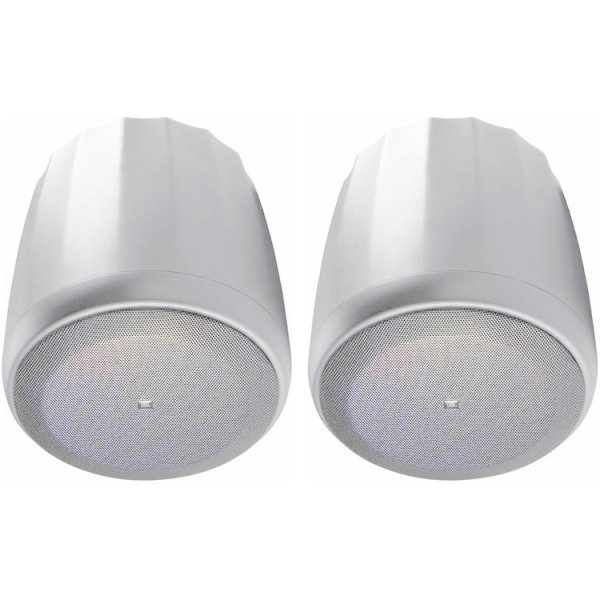

The white Control 60PS/T Pendant Subwoofer with Crossover from JBL is a pair of subwoofers featuring low distortion 150W power handling, and an 8" low frequency driver with a butyl rubber surround for well-damped, tight sound quality and long-term reliability, with a polypropylene-coated cone for humidity protection. The high-temperature 2" voice coil and low-mass fiberglass coil former ensure good bass transient response and stability under high power, high duty-cycle working conditions. The Control 60PS/T provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications. The Control 60PS/T may be driven by itself, or with other subwoofers, on an amplifier channel, sending it either a signal that has been actively low-passed earlier in the signal chain via DSP or a full-range signal, utilizing the built-in passive 125 Hz low-pass filter. The included passive crossover also provides high-passed satellite outputs for use with either two or four satellite loudspeakers (not for one or three satellite speakers), resulting in a full-range, wide-bandwidth, passively-crossed, mono subwoofer-satellite system. Using the built-in passive crossover is best suited for satellite speakers with sensitivities in the 82 dB to 86 dB (2.83V @ 1m) range, resulting in a well-balanced overall frequency response. A 100W multi-tap, wide-bandwidth, low-saturation transformer allows the speaker to be used on either a 70V/100V distributed speaker system, or as a direct low-impedance 8 ohms speaker. If satellite speakers are used on the 70V/100V settings, the satellite speakers should be low-impedance (8 - 16 ohms each). A loop out connector is provided on the subwoofer for looping the full-range input signal to other loudspeakers or to other subwoofer/satellite systems. Rubber boot covers for each locking connector protect the terminals when using the speaker outdoors. |
