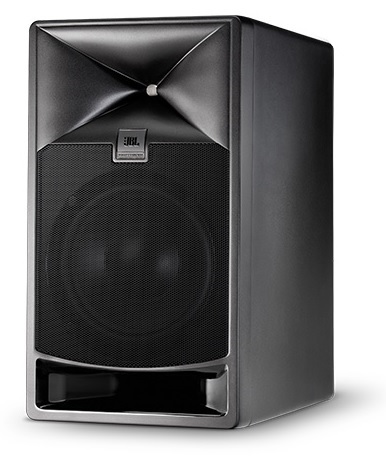

Part of JBL's 7 Series, the LSR705i 5" studio reference monitor is designed for use in applications such as multi-channel monitoring in post rooms, broadcast facilities and trucks. Leveraging patented technologies developed for JBL's flagship M2 Master Reference Monitor, 7 Series Studio Monitors deliver detailed imaging, extended freqeucny response and remarkable output from compact enclosures. Centrally amplified and tuned, and easily installed, the 705i studio monitor is the heart of an elegant, scalable system for broadcast and post facilities working in immersive audio formats.
Patent Pending Image Control Waveguide
First introduced in the JBL M2 Master Reference Monitor, the Image Control Waveguide technology allows for a seamless crossover and uncolored response in critical dialogue range. This technology also allows for neutral off-axis response for greater accuracy and room-to-room consistency and detailed imaging and a coherent transition between screen channels, surrounds and overhead speakers.
Next Generation Driver Technology
Metting the dynamic range and extended frequency response requirements of today's production formats, 7 Series incorporates JBL next generation "Super Drivers." The 2409H High Frequency transducer incorporates an innovative low-mass annular diaphragm that delivers smooth response beyond 40 kHz, with extraordinary output and very low distortion. The 725G 5" high-excursion low frequency driver continuously delivers high output with minimal power compression and low frequency response into the 30 Hz range.
System Integration
The 7 Series is modular and scalable for number of channels and room size and can be combined with JBL's M2 Master Reference Monitor to product a wide range of systems. Plus, with centralized amplification and processing, the requirement for power source at each speaker location is eliminated. These speakers are also equipped with BSS BLU Link networked audio and Harman HiQnet, and the compact enclosures |
