Reference Phantom Power Module for DAM+ Series Capsules

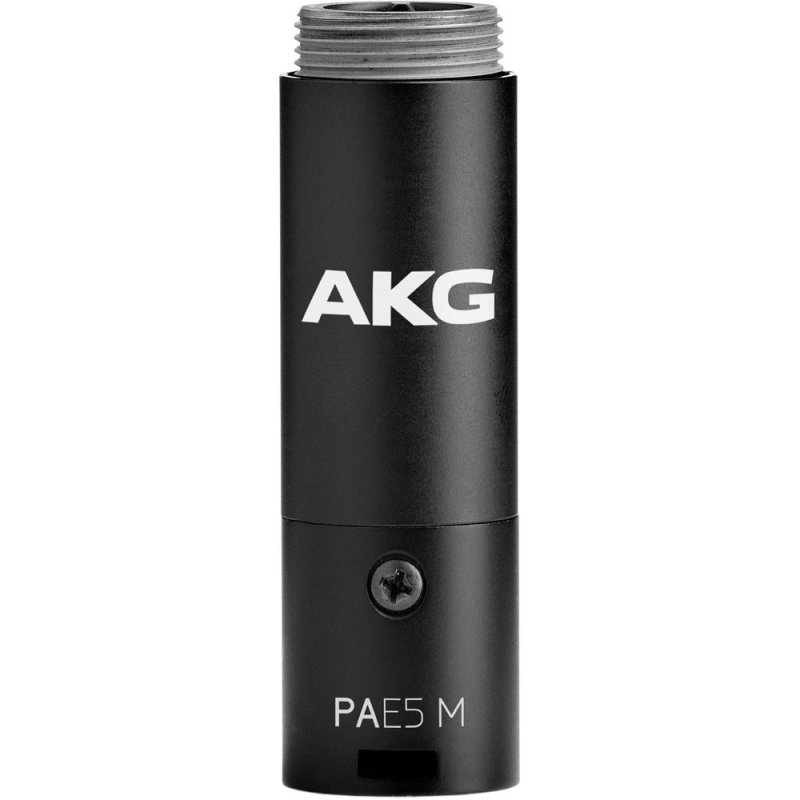

The PAE5 M reference phantom power module for fixed and mobile installation provides a five-pin XLR connector that allows the audio signal and the control voltage for a LED ring to be fed separately. Thus, the LED ring can be activated remotely by a 9-52V logic output from any automatic mixer to show the ?mic on? status. With its wide voltage range the module will fit most available microphone mixers. The PAE5 M features a bass roll off for reduction of structure-borne noise. Its integrated system connector with gold-plated contacts securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.
